Money Flow Index (MFI)

Function Syntax

=MFI(data, period)
  • data (array):
    Range of columns containing the date, Open, high, Low, close, volume data.
  • period (number):
    The number of periods (days) used to calculate the MFI. Typically 14 periods

Returns:
A two-column array of dates and their corresponding MFI values

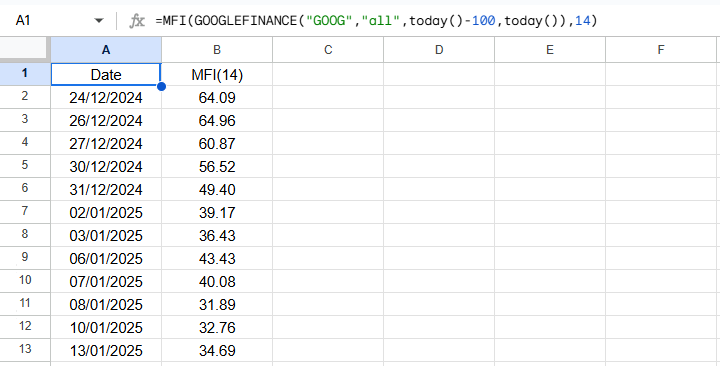

Google Sheets Output Example

Below is an example of the resulting array when applying the custom MFI() function in Google Sheets

mfi return array
MFI Return Array

Spreadsheet

Apps Scripts Code

Here’s the full Google Apps Script code.
Paste this directly into the Google Sheets Apps Script editor (Extensions → Apps Script):

mfi.gs
 * Calculates the Money Flow Index (MFI) for a given dataset and period.
 *
 * @param {array} data - a 2D array where the first column is the  dates, and subsequent columns for  open, high, low, close and volume.
 * @param {number} period - The number of periods for calculating the MFI.
 * @returns {array} - A 2D array with headers: Date, MFI.
 * @customfunction
 */

function MFI(data, period) {
  // Preprocess data using getData
  const processedData = getData(data);
  const dates = processedData.slice(1).map(row => row[0]); // Extract dates
  const highs = processedData.slice(1).map(row => row[2]); // Extract high prices
  const lows = processedData.slice(1).map(row => row[3]); // Extract low prices
  const closes = processedData.slice(1).map(row => row[4]); // Extract close prices
  const volumes = processedData.slice(1).map(row => row[5]); // Extract volumes

  // Check if the period is greater than the length of the data
  if (period > closes.length) {
    throw new Error("Error: The specified period exceeds the length of the data.");
  }

  // Initialize arrays for MFI calculation
  const mfiValues = [["Date", `MFI(${period})`]]; // Include headers

  // Calculate Typical Price (TP) and Raw Money Flow (RMF)
  const typicalPrices = closes.map((close, i) => (highs[i] + lows[i] + close) / 3);

  const moneyFlows = typicalPrices.map((tp, i) => tp * volumes[i]);

  // Calculate MFI for each period
  for (let i = period - 1; i < typicalPrices.length; i++) {
    let positiveFlow = 0;
    let negativeFlow = 0;

    for (let j = 0; j < period; j++) {
      const currentTP = typicalPrices[i - j];
      const previousTP = typicalPrices[i - j - 1];

      if (currentTP > previousTP) {
        positiveFlow += moneyFlows[i - j];
      } else if (currentTP < previousTP) {
        negativeFlow += moneyFlows[i - j];
      }
    }

    // Calculate Money Flow Ratio (MFR)
    const moneyFlowRatio = positiveFlow / negativeFlow;

    // Calculate MFI
    const mfi = 100 - (100 / (1 + moneyFlowRatio));

    // Append the MFI value with the corresponding date
    mfiValues.push([dates[i], mfi]);
  }

  return mfiValues;
}

/**
 *
 * @param {Array<Array>} data - A 2D array of cell values to process. The first row should contain headers.
 * @returns {Array<Array>} - A 2D array where the first row contains headers and subsequent rows contain processed data.
 *
 * @customfunction
 *
 */

function getData(data) {
  if (!data || data.length === 0) {
    throw new Error("Input data is empty or invalid.");
  }

  // Check if the first row contains headers
  const headers = Array.isArray(data[0]) && data[0].every(item => typeof item === "string")
    ? data[0]
    : null;

  if (!headers) {
    // If no headers, assume the first column is the date column and process data
    return data.map(row => row.map((value, index) => {
      return index === 0 ? new Date(value) : parseFloat(value);
    }));
  }

  // Process rows with headers
  return [headers, ...data.slice(1).map(row => headers.map((header, index) => {
    const key = header.toLowerCase();
    return key === "date" ? new Date(row[index]) : parseFloat(row[index]) || row[index];
  }))];
}
