Average True Range (ATR)
Function Syntax
=CURRENTSTREAK(data, period) data(array):
Range of columns containing the date, Open, high, Low, close, volume data.period(number):
Number of (periods) days over which to calculate the ATR.
Returns:
A two-column array of dates and their corresponding ATR values.
Google Sheets Output Example

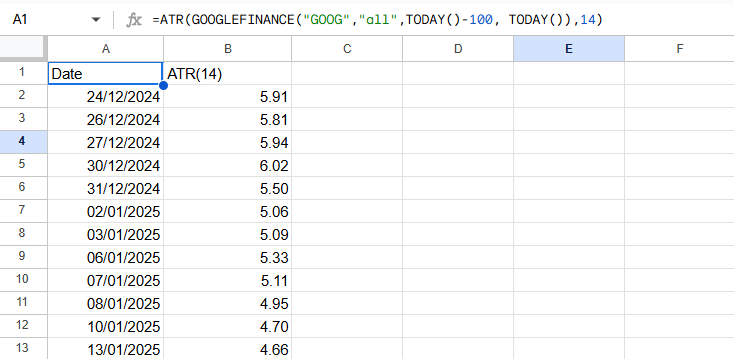

Below is an example of the resulting array when applying the custom ATR() function in Google Sheets
Apps Scripts Code
Here’s the full Google Apps Script code.
Paste this directly into the Google Sheets Apps Script editor (Extensions → Apps Script):
atr.gs
/**
* Calculates the Average True Range (ATR) for a given data set and period.
*
* @param {array} data - an array where the first column is the , and subsequent columns for open, high, low, close and volume.
* @param {number} period - the number of days over which the ATR is calculated.
* @returns {array} -the ATR values along with corresponding dates.
* @customfunction
*/
function ATR(data, period) {
//Check number of arguments
if (arguments.length !== ATR.length) {
throw new Error(`Wrong number of arguments. Expected ${ATR.length} arguments, but got ${arguments.length} arguments.`);
}
// Get True Range values using the TR function
const trueRanges = TR(data); // Already includes headers
// Calculate the ATR using the SMA function
const atrValues = SMA(trueRanges, period); // SMA handles averaging
// Update the ATR header for clarity
atrValues[0][1] = `ATR(${period})`;
return atrValues;
}
/**
*
* @param {Array<Array>} data - A 2D array of cell values to process. The first row should contain headers.
* @returns {Array<Array>} - A 2D array where the first row contains headers and subsequent rows contain processed data.
*
* @customfunction
*
*/
function getData(data) {
if (!Array.isArray(data) || data.length === 0) {
throw new Error("Input data must be a non-empty array.");
}
// Check if the first row contains headers
const headers = Array.isArray(data[0]) && data[0].every(item => typeof item === "string")
? data[0]
: null;
if (!headers) {
// If no headers, assume the first column is the date column and process data
return data.map(row => row.map((value, index) => {
return index === 0 ? new Date(value) : parseFloat(value);
}));
}
// Process rows with headers
return [headers, ...data.slice(1).map(row => headers.map((header, index) => {
const key = header.toLowerCase();
return key === "date" ? new Date(row[index]) : parseFloat(row[index]) || row[index];
}))];
}
/**
* Calculates the True Range (TR) values
*
* @param {array} data - an array where the first column is the dates, and subsequent columns for open, high, low, close and volume.
* @returns {Array<Array>} - A 2D array containing dates and their corresponding True Range values.
*
* @customfunction
*/
function TR(data) {
// Preprocess data using getData
const processedData = getData(data);
// Extract columns from the processed data
const dates = processedData.slice(1).map(row => row[0]);
const highs = processedData.slice(1).map(row => row[2]);
const lows = processedData.slice(1).map(row => row[3]);
const closes = processedData.slice(1).map(row => row[4]);
// Calculate True Range values
let trueRanges = [["Date", "True Range"]]; // Include headers
for (let i = 1; i < highs.length; i++) {
let tr = Math.max(highs[i], closes[i - 1]) - Math.min(lows[i], closes[i - 1]);
trueRanges.push([dates[i], tr]);
}
return trueRanges;
}
/**
* Calculates the Simple Moving Average (SMA) for a given dataset and period.
*
* @param {array} data - an array where the first column is the dates, and subsequent columns for open, high, low, close and volume.
* @param {number} period The number of periods to calculate the SMA, e.g., 14 for a 14-day SMA.
* @returns {Array<Array>} The Simple Moving Average (SMA) of the range.
* @customfunction
*/
function SMA(data, period) {
//Check number of arguments
if (arguments.length !== SMA.length) {
throw new Error(`Wrong number of arguments. Expected ${SMA.length} arguments, but got ${arguments.length} arguments.`);
}
const processedData = getData(data);
const dates = processedData.slice(1).map(row => row[0]); // Extract dates
const closePrices = processedData[0].length === 2
? processedData.slice(1).map(row => row[1]) // For 2-column arrays, use the second column
: processedData.slice(1).map(row => row[4]); // Default: use index 4 for close price
// Check if the period is greater than the length of the data
if (period > closePrices.length) {
throw new Error("Error: The specified period exceeds the length of the data.");
}
// Initialize an array to store SMA values with corresponding dates
let results = [["Date", `SMA(${period})`]]; // Include headers
// Calculate SMA for the given period
for (let i = period - 1; i < closePrices.length; i++) {
const periodPrices = closePrices.slice(i - period + 1, i + 1); // Get the slice for the period
const sma = periodPrices.reduce((acc, val) => acc + val, 0) / period; // Calculate average
// Append the current date and SMA to the results array
results.push([dates[i], sma]);
}
return results;
}Last updated on
